PRJ-08

Oct 2024 — April 2026 · Axis Lighting

DriveWorks Transformation

CAD Automation · Logic-Driven Design

Automation

Automated shop drawing generation for 83 configurable lighting products with four DriveWorks projects driven by the XML from Universal Configurator — cutting order-line generation from 1.3 hours to 6 minutes.

SHOP-DRAWING TIME FOR EACH ORDER LINE

1.3 hours→6 minutes

PRODUCTS AUTOMATED

0→83

DRIVEWORKS PROJECTS BUILT

0→4

Problem

Shop drawings and CAD models for several orders were created manually — about 1.3 hours each order line — increasing client submittal drawing lead times.

Approach

  • Built four DriveWorks projects from scratch — Extend, Sketch, Troffers, Patterns — covering 83 products — each with golden 3D models, 2D drawings and sheet metal parts (base plates, mounting plates, reflectors, top plates).
  • DW rules read the XML output of the in-house built universal configurator, generated from the product ordering code, and map it to DriveWorks variables that drive dimensions, features, part instances, annotations and materials.
  • DriveWorks Autopilot runs each family's own specification flow: pick up the XML, fills the data, generate models and drawings, close the project
  • Orders flow from the ERP system to the shop-drawing tool and into the Autopilot queue for generating shop drawings.

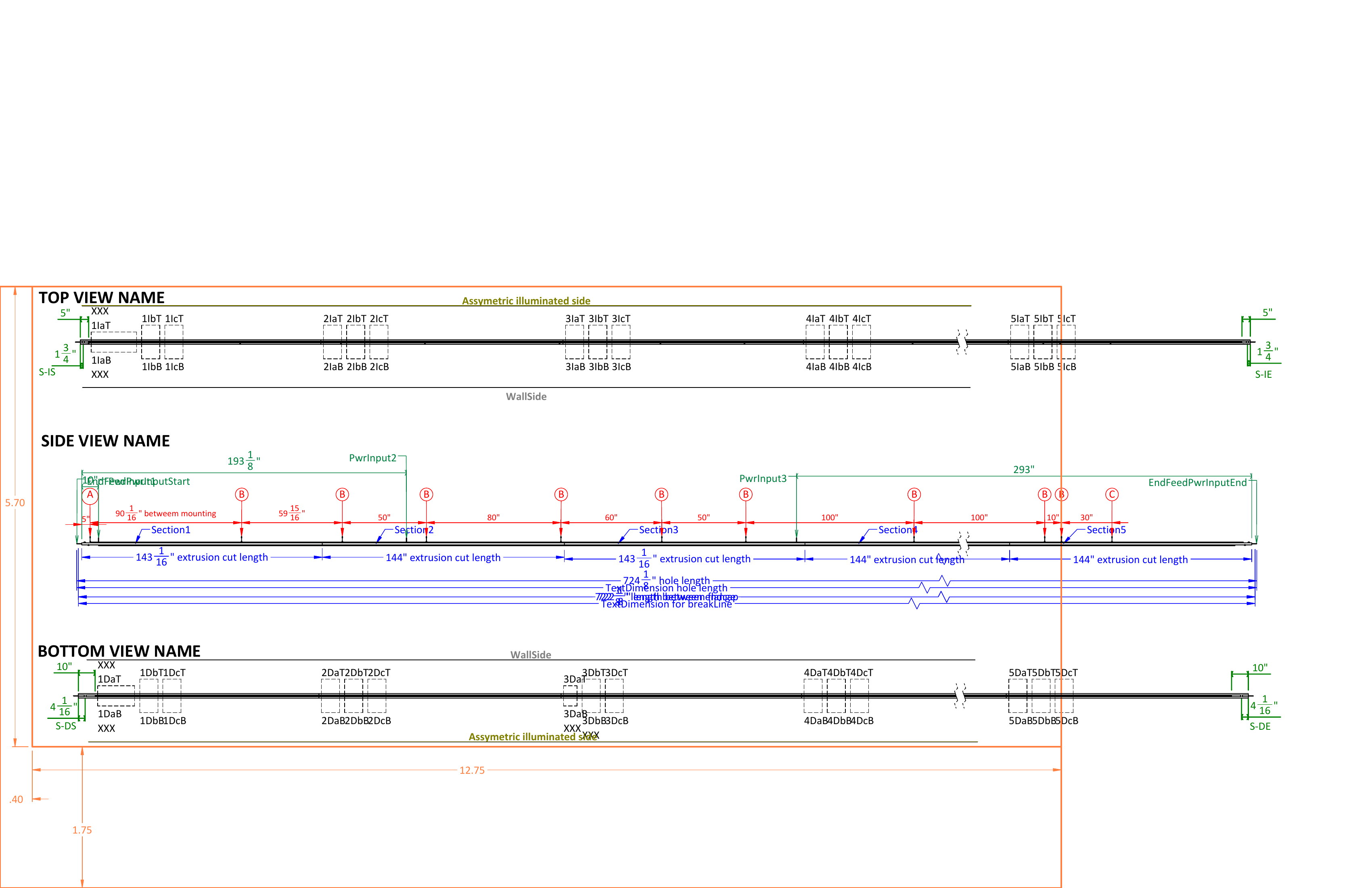

  • Outputs: 3D models, 2D shop drawings (CAD & PDF), product-specific sheet metal parts, DXFs for the machine shop and partial BOMs

Outcome

Shop-drawing creation time reduced from a manual 1.3-hour bottleneck to 6 minutes per order line, measured from autopilot queue to completed drawing and CAD models — freeing engineering verification to focus on new product introduction.

Artifacts

Selected outputs from the project — videos, generated drawings, code, and stakeholder decks.

DRIVEWORKS GENERATION WALKTHROUGH — A CUSTOMER CONFIGURATION IS SOLVED BY DRIVEWORKS PRO LOGIC AND GENERATES THE FULL SHOP-DRAWING SET FOR A LINEAR PRODUCT IN SECONDS, END-TO-END FROM INPUTS TO RELEASED MODELS.
